TECHNICAL SPECIFICATIONS
LOADS
Frame system endures 80 kg / m² Snow Load, 102 km / h Wind Load and 1st Degree Earthquake Zone static calculations. (TS 498)

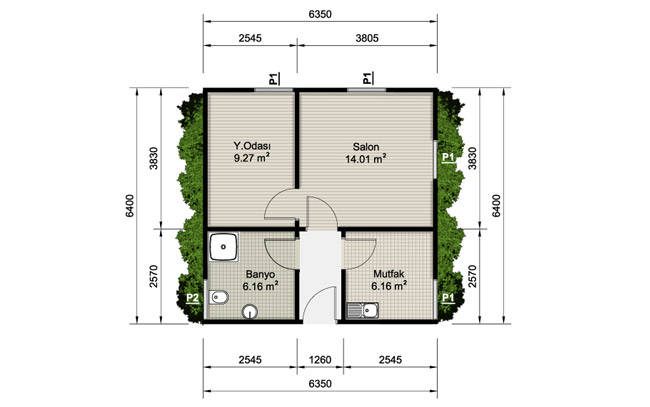

DIMENSIONS
Building Widths: Upon request: between 5.00 m and 12.00 m. Building Length: Multiplies of 1.26 m upon request
COLUMNS
2 mm electrostatic powder coated galvanized special bended capped profiles. They are placed at 1.26 m intervals.
TRUSSES
They are placed at 1.25 m intervals in the direction of the building length. Lower head and upper head 2 mm thick bended profile of galvanized sheet.
WALLS

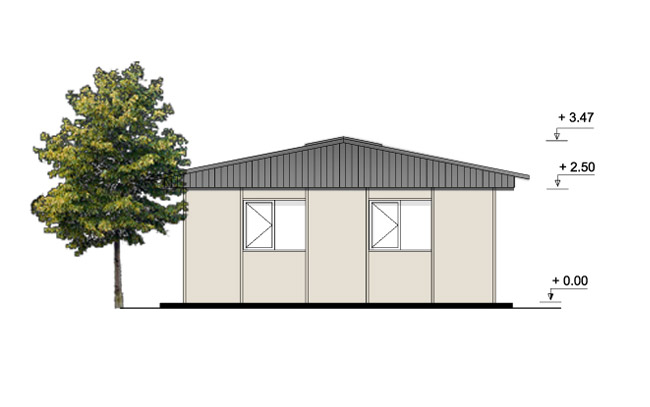

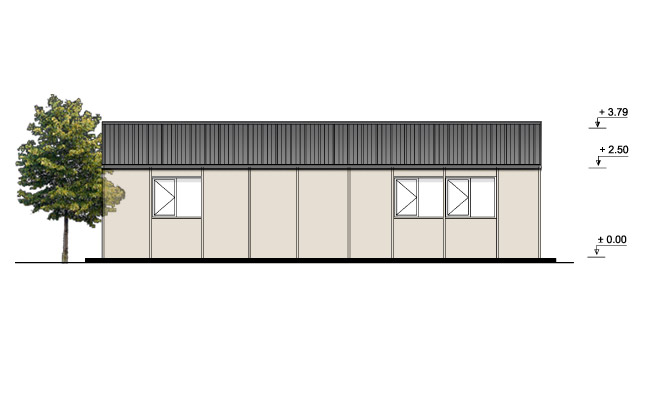

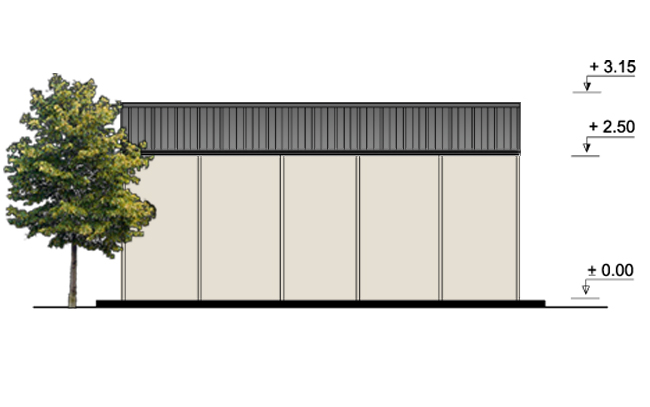

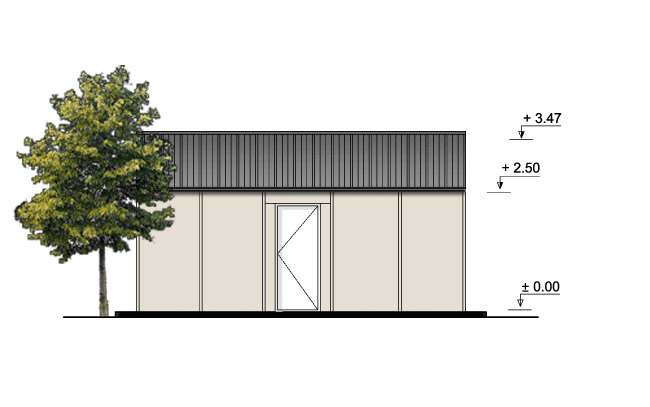

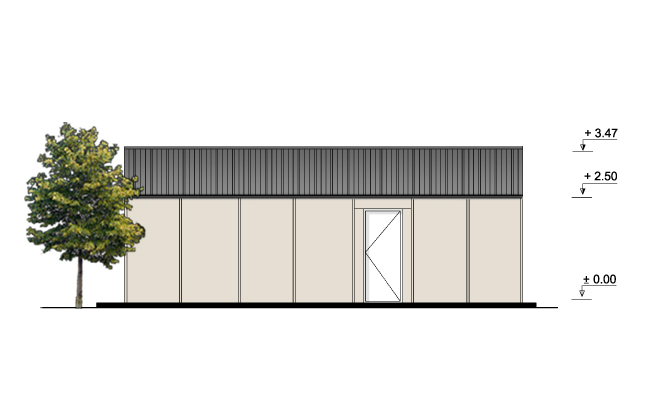

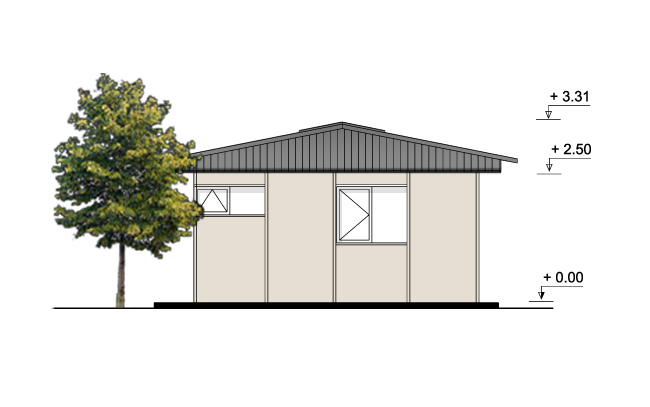

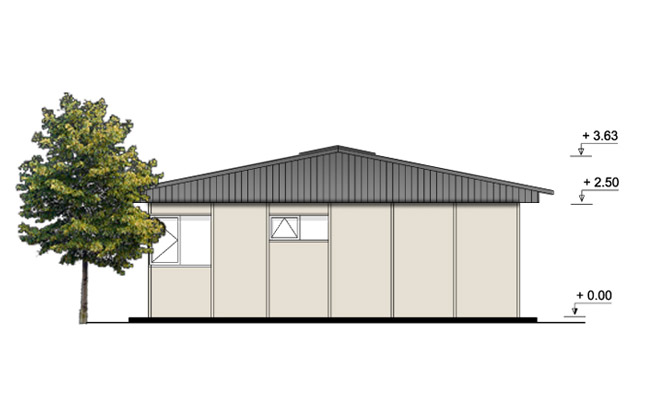

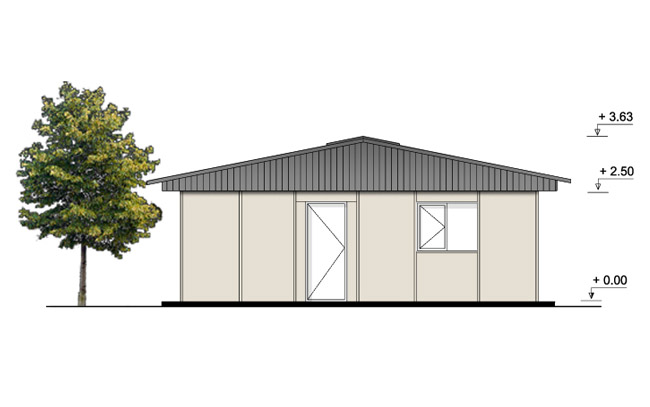

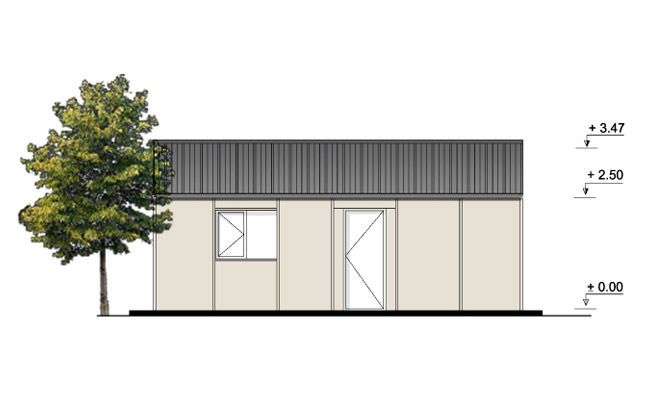

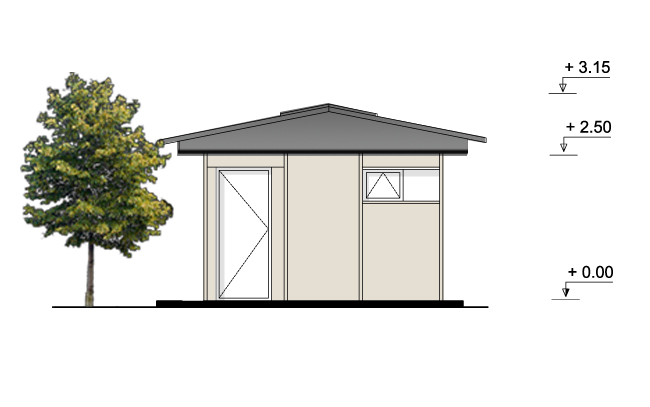

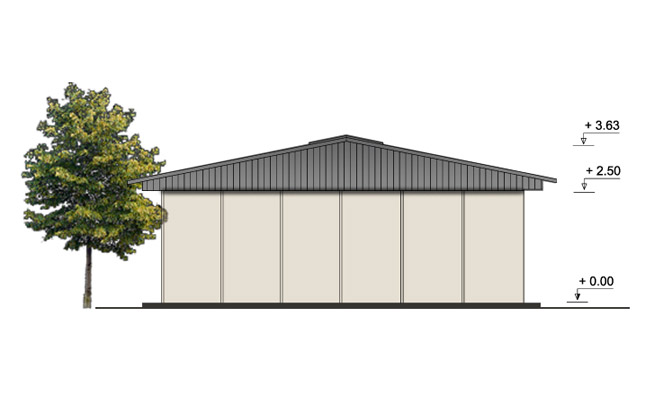

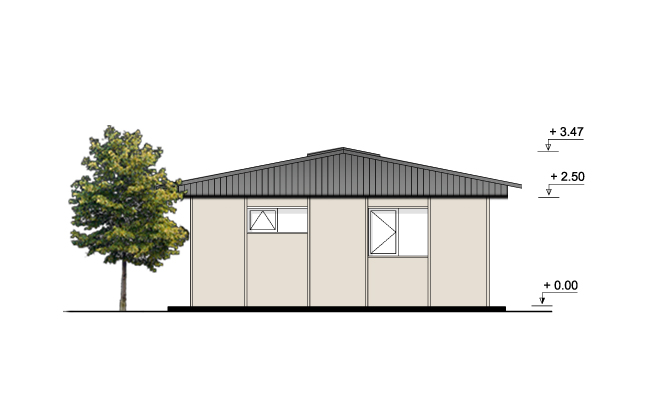

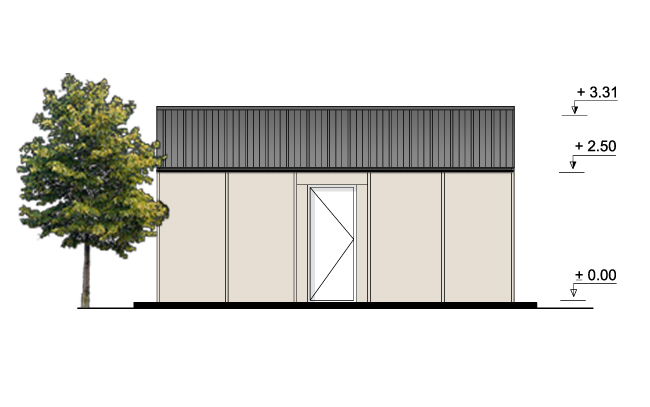

Building Wall Height: 2.50 m
Wall Width: 1.25 m
Surfaces: Inner surfaces: 8mm cemented chipboard, Outer surfaces: Cemented Chipboard Panels: 8mm cemented chipboard, Ecosteel Panels: electrostatic painted film coated galvanised steel.
Insulation: 35mm Polystyrene (16kg / m3 - 0.039W / mK)
İzolasyon: 35mm Polistren (16kg/m3-0.039W/mk)

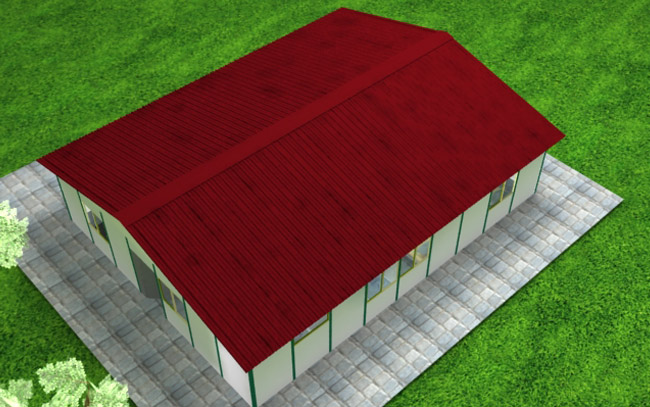

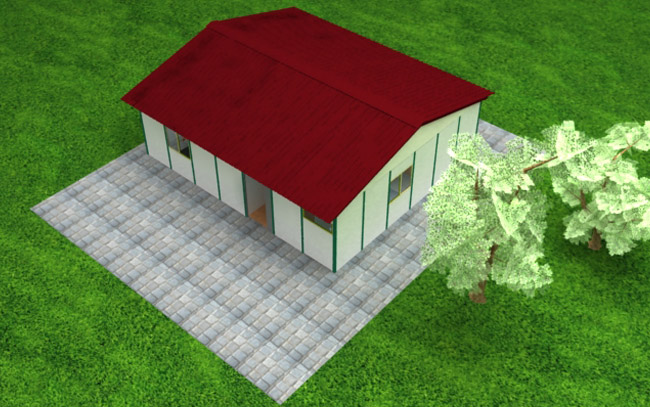

ROOF AND CEILING
There are galvanized fringes on both sides of the building. Roof coating is 0.50 trapeze galvanized sheet (27/200 form), ceiling insulation; 8 mm glass wool mattress. Ceiling coating; 12.5 mm white plaster, green plaster suspended ceiling in wet spaces.
DOORS AND WINDOWS
Outer doors: Galvanized sheet and electrostatic powder painted. Interior doors are American panel, Rall 9002. The windows are Pimapen brand and double glazed.
